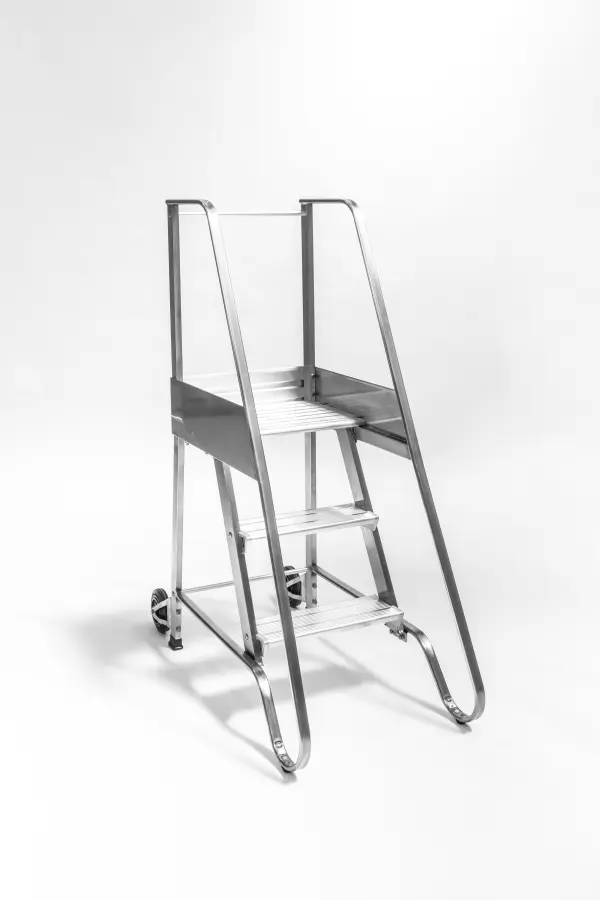

It is constructed with a stainless steel frame, non-slip aluminum steps and landing, and is equipped with a handrail. The standard model is equipped with 2 fixed rear wheels and is easily moved by lifting it from the front.
The SG/P version can be supplied upon request, which includes 2 fixed rear wheels and the addition of 2 spring-loaded swivel front wheels.
With this version, the ladder moves simply by pushing it and locks under the operator’s weight.
Steps: mounted on die-cast fittings with pin and anti-twist spacer, inserted into the uprights.
NOT WELDED OR RIVETED
Share this product
Want to buy one of our ladders? Request a quote now!
| Code | Steps | A | B | D | E | H | G | Weight | Quantity | Add to quote |
|---|---|---|---|---|---|---|---|---|---|---|
| S0302AS | 2 | 500 | 1120 | 500 | 960 | 510 | 2350 | 14.3kg | ||
| S0303AS | 3 | 750 | 1360 | 520 | 1100 | 530 | 2600 | 17.2kg | ||
| S0304AS | 4 | 1000 | 1600 | 550 | 1230 | 550 | 2850 | 20.2kg |
All the technical data you need to know before purchasing one of our products
CAPACITY: 150 kg (Refers to one person with tools)
SIDES: Stainless steel (60×20 mm + 40×20 mm + 30×15 mm)
LANDING PLATFORM: Non-slip aluminium 450×340 mm
WHEELS: Rear ø 140 mm (SG/P front ø 100 mm)
STEPS: Non-slip aluminium 150×23 mm
TOP WIDTH: 450 mm
SAFETY STANDARD: UNI – EN 131-2, UNI EN 14183
