DESCRIPTION

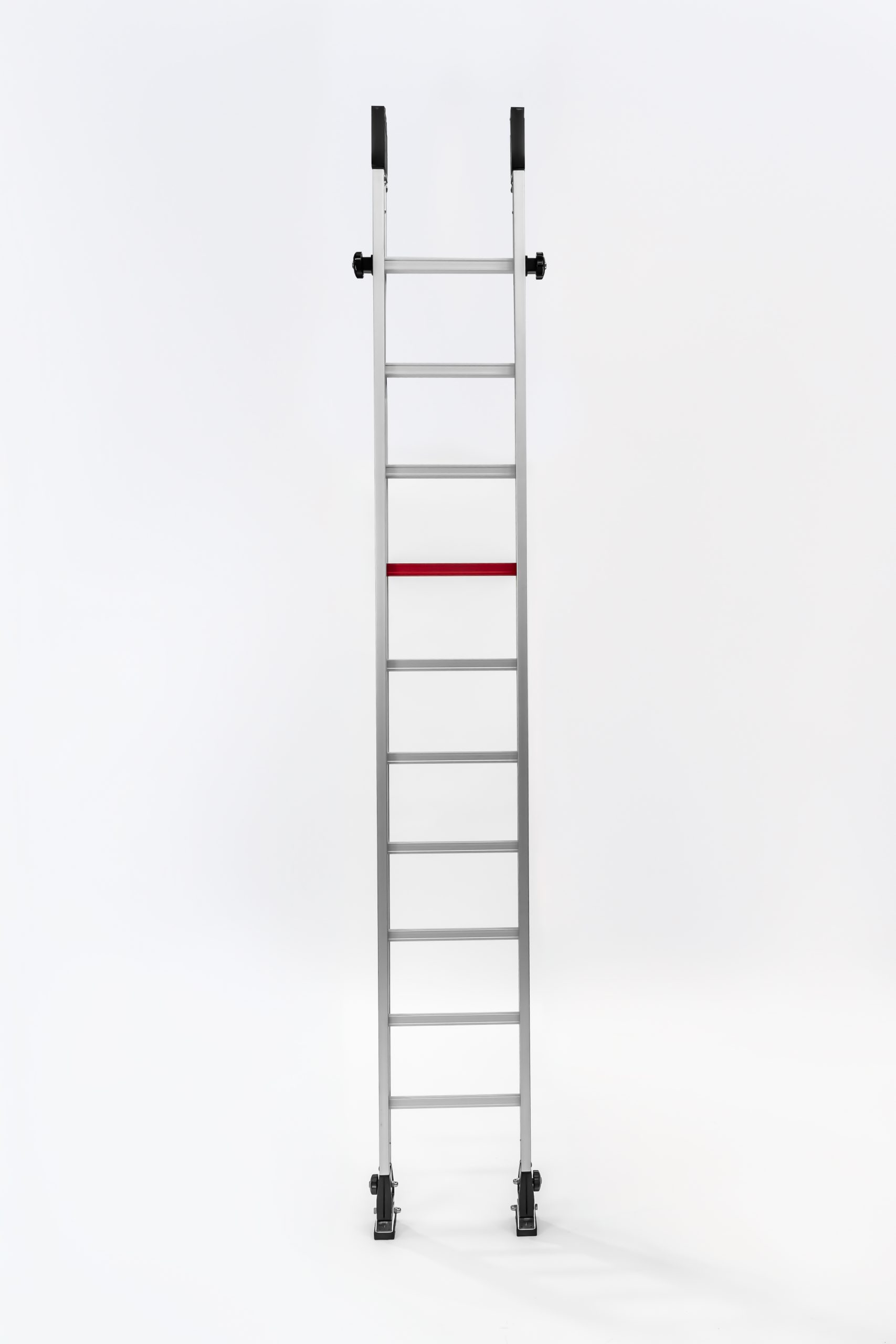

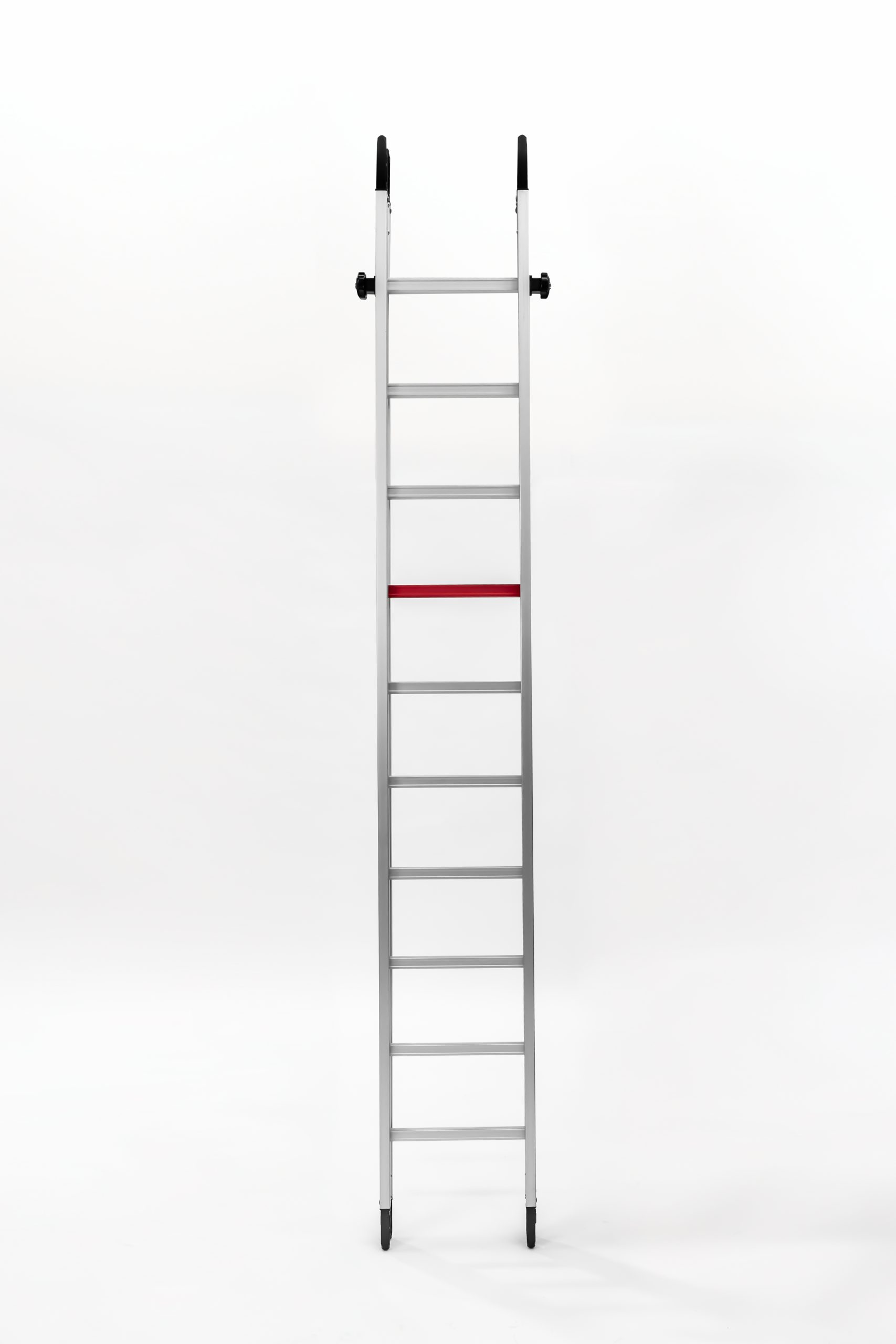

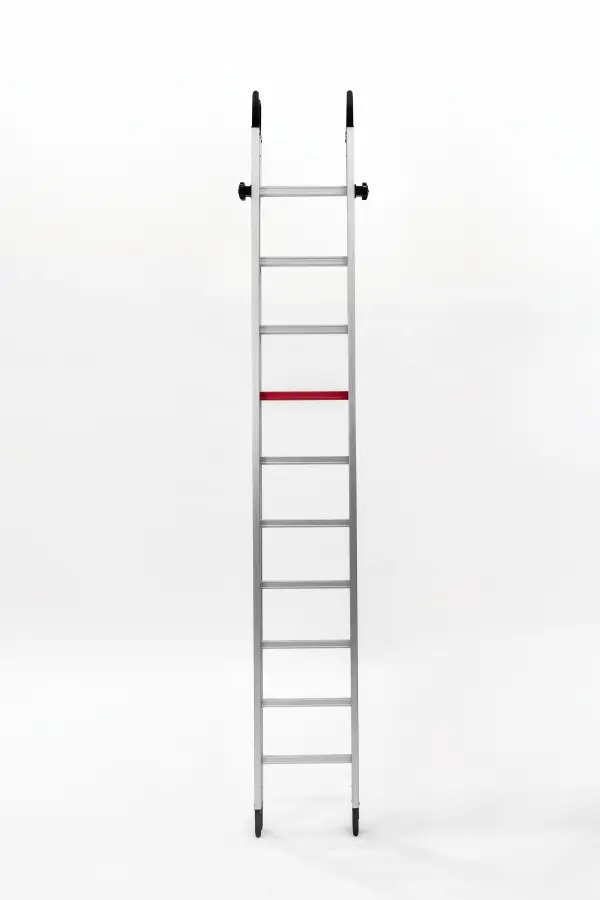

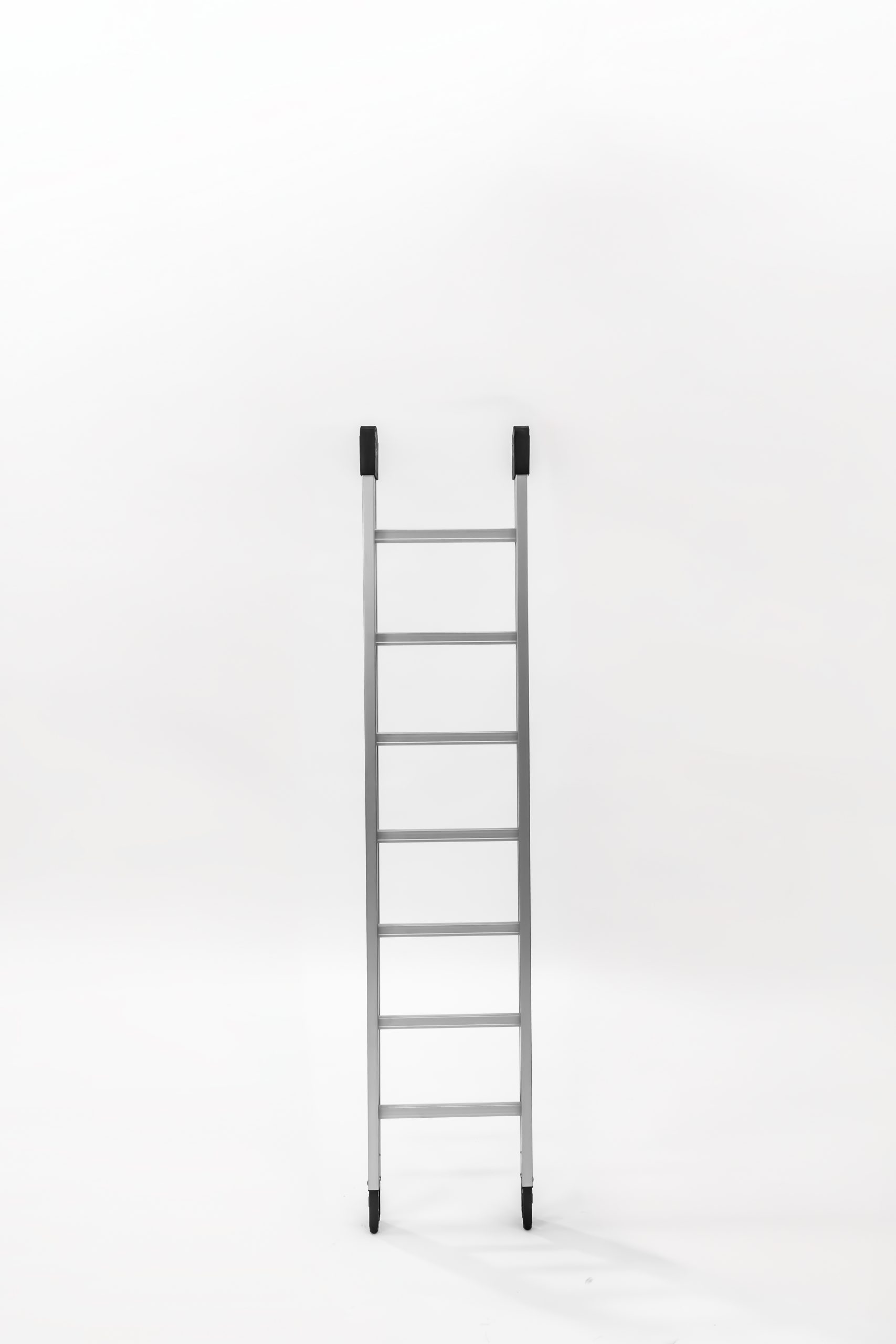

The ladder is made of anodized aluminum and it is designed for the special needs of firefighters and Civil Protection. The total height of the ladder is 10,4 m and it is composed of 4 items, divided as follows:
1 Bottom element
2 Interchangeable middle elements
1 Final element
STEPS: WELD FREE AND RIVETING FREE

Share this product

SKU N/A Categories ,

Request a quote for this product

Do you want to buy one of our stairs? Request a quote now!

CodeDescriptionElementsStepsAltezza Totale StrutturaFooting WidthTop WidthWeightQuantityAdd to quote
S4510IVFBottom section middle element310315547040513,2kg
S4507IVFFinal element1722004704259kg
The overlap between an element and another measures 430 mm. Measures are in mm

Request a quote for this product

All the technical data to know before purchasing one of our products

WEIGHT CAPACITY: up to 3 people

STEPS: anodized, anti-slip, aluminum 35×24 mm

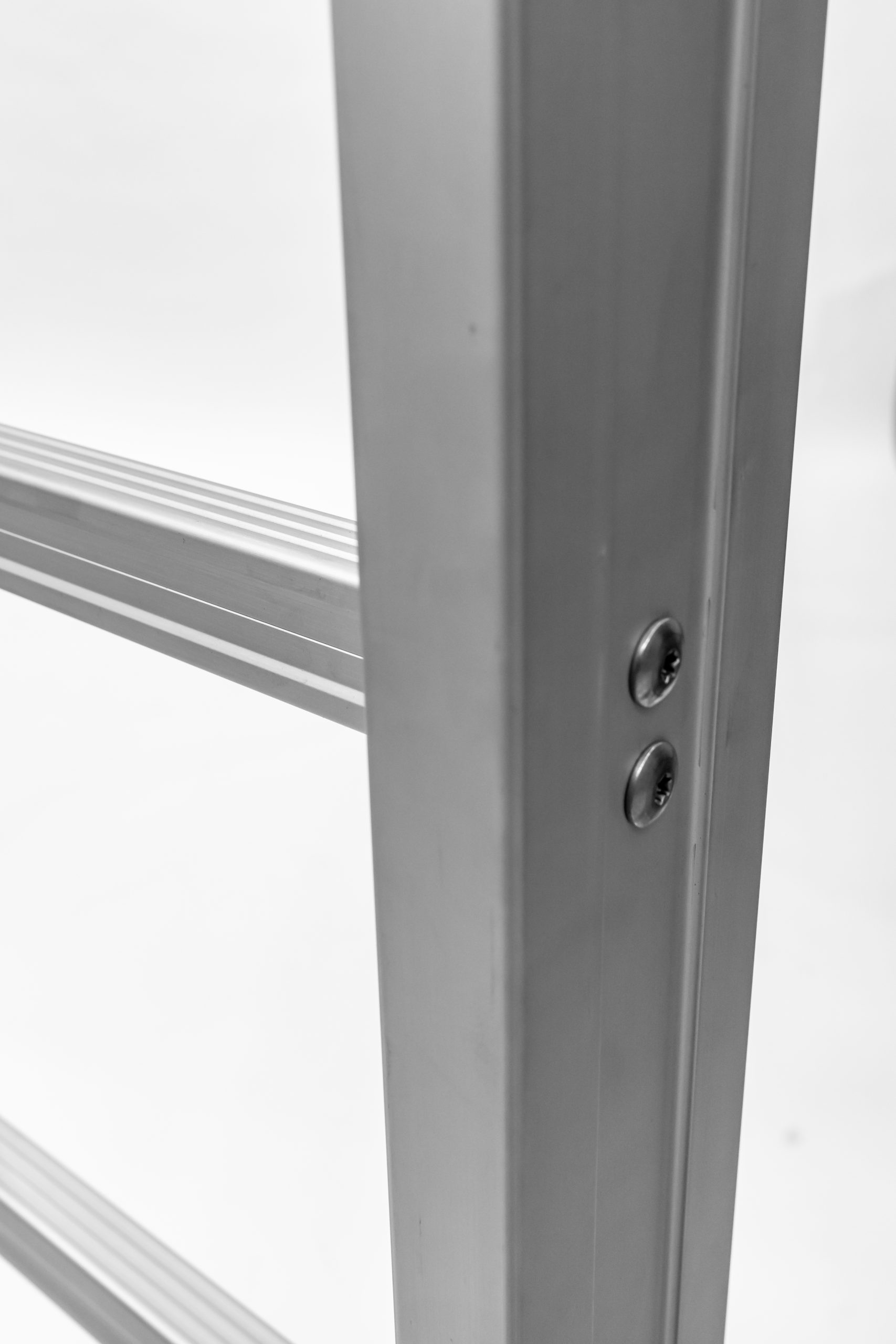

FRAMES: anodized aluminum 88x30mm

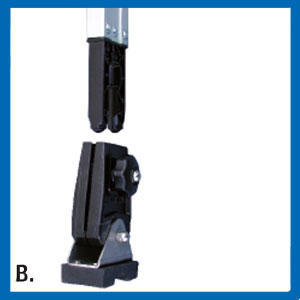

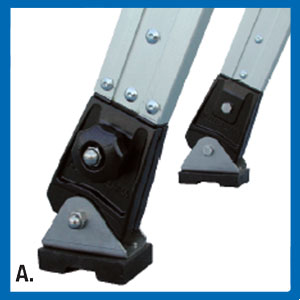

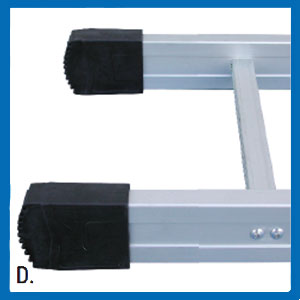

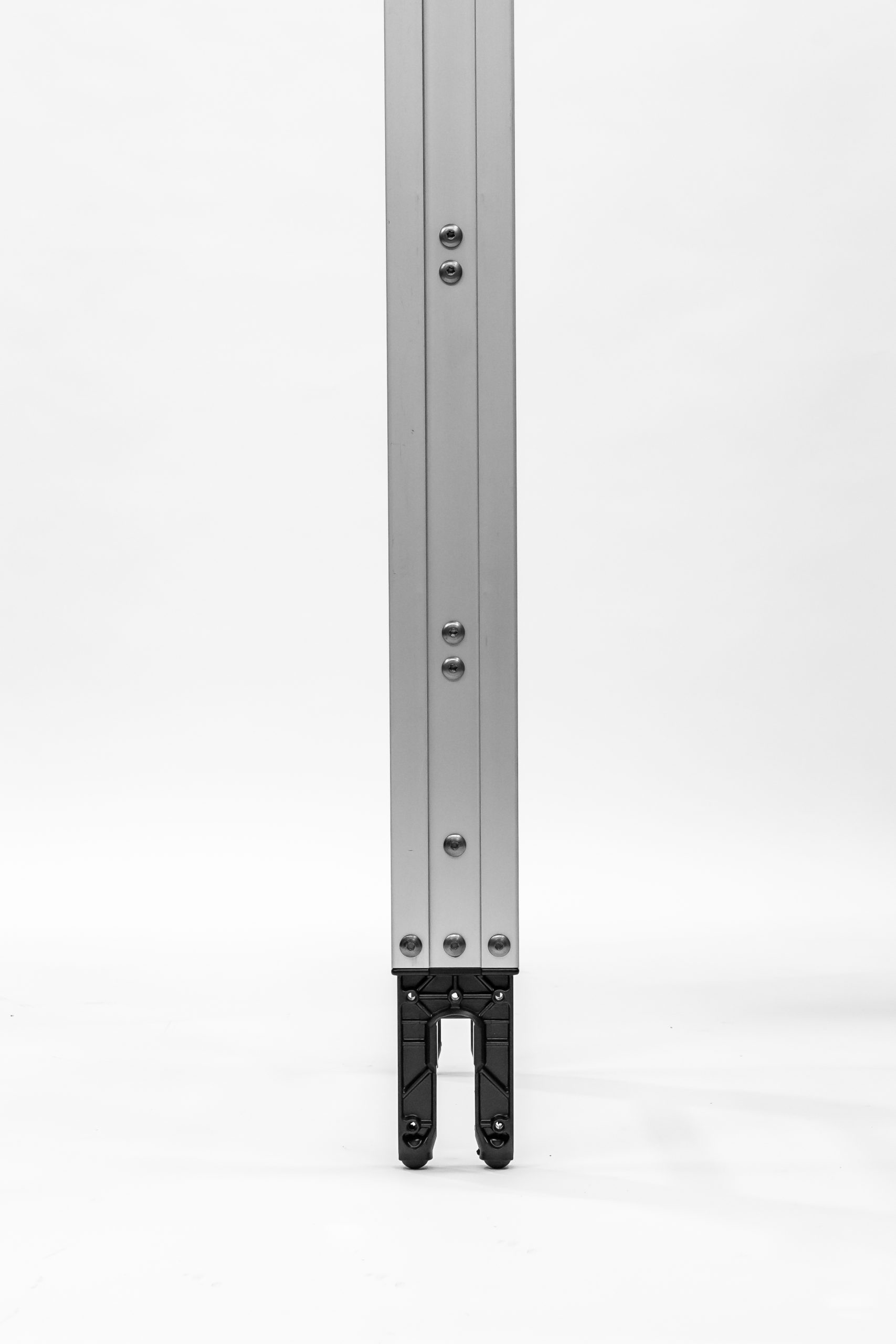

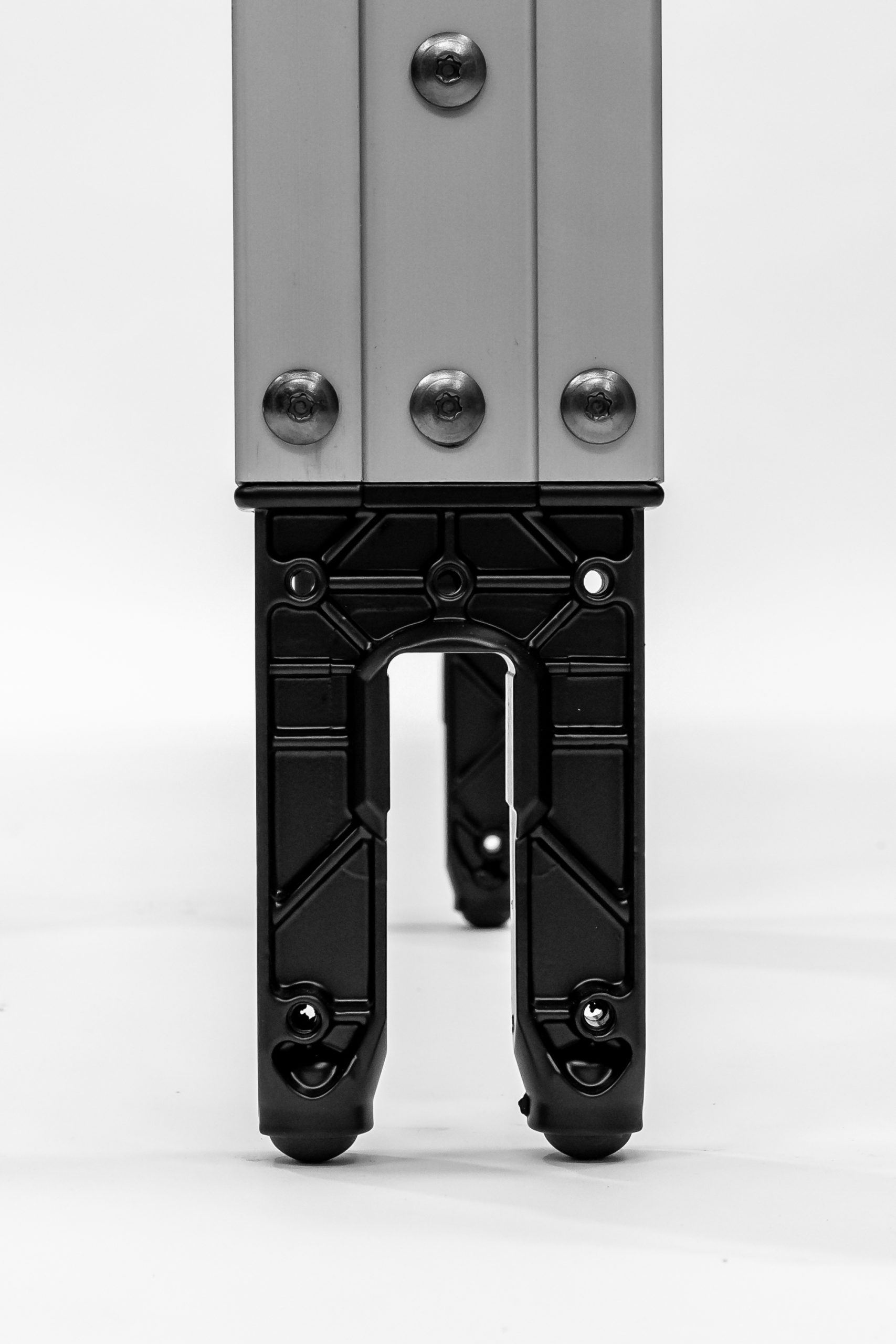

FEET: articulated in rubber and stainless steel

SCREWS/BOLTS: stainless steel

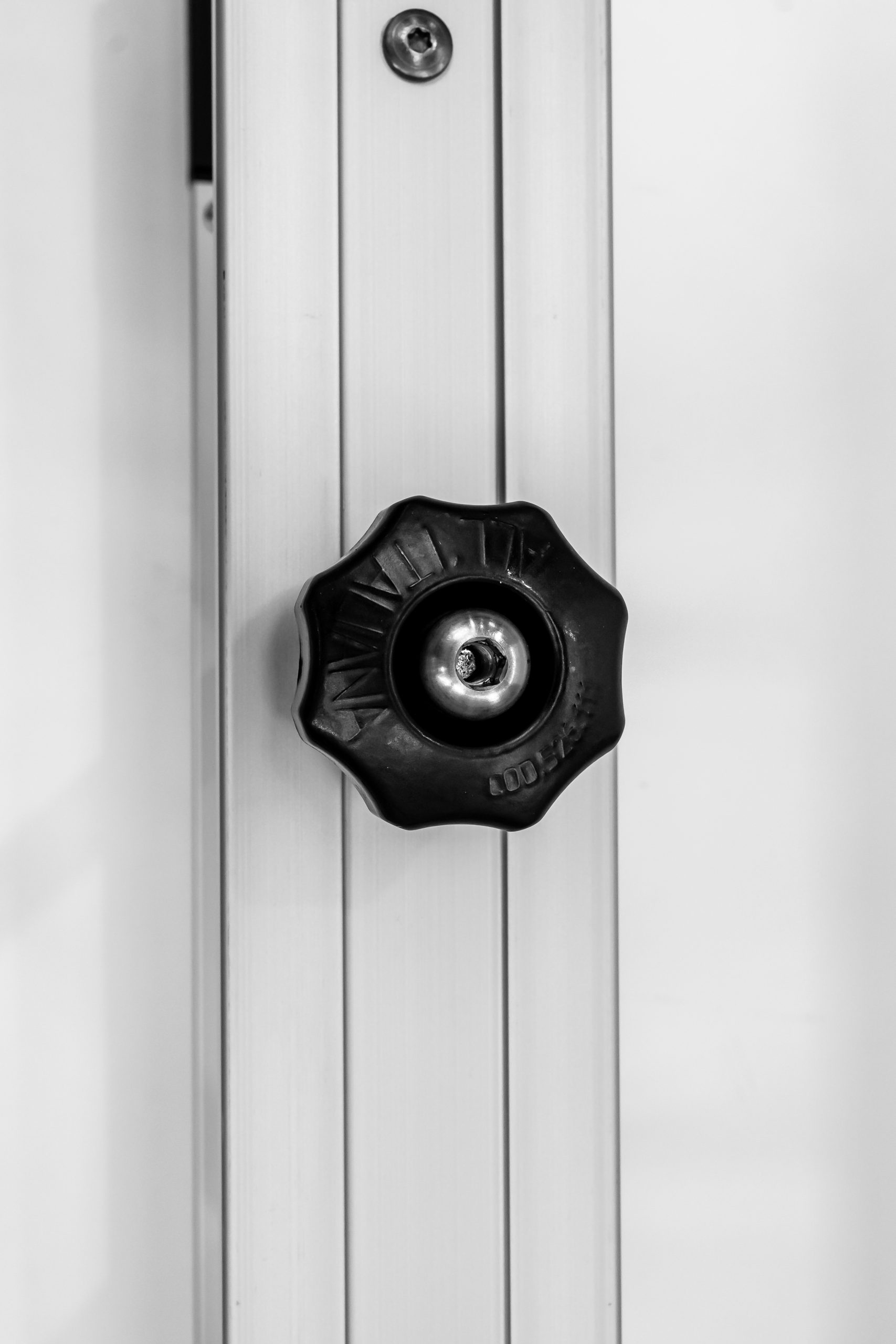

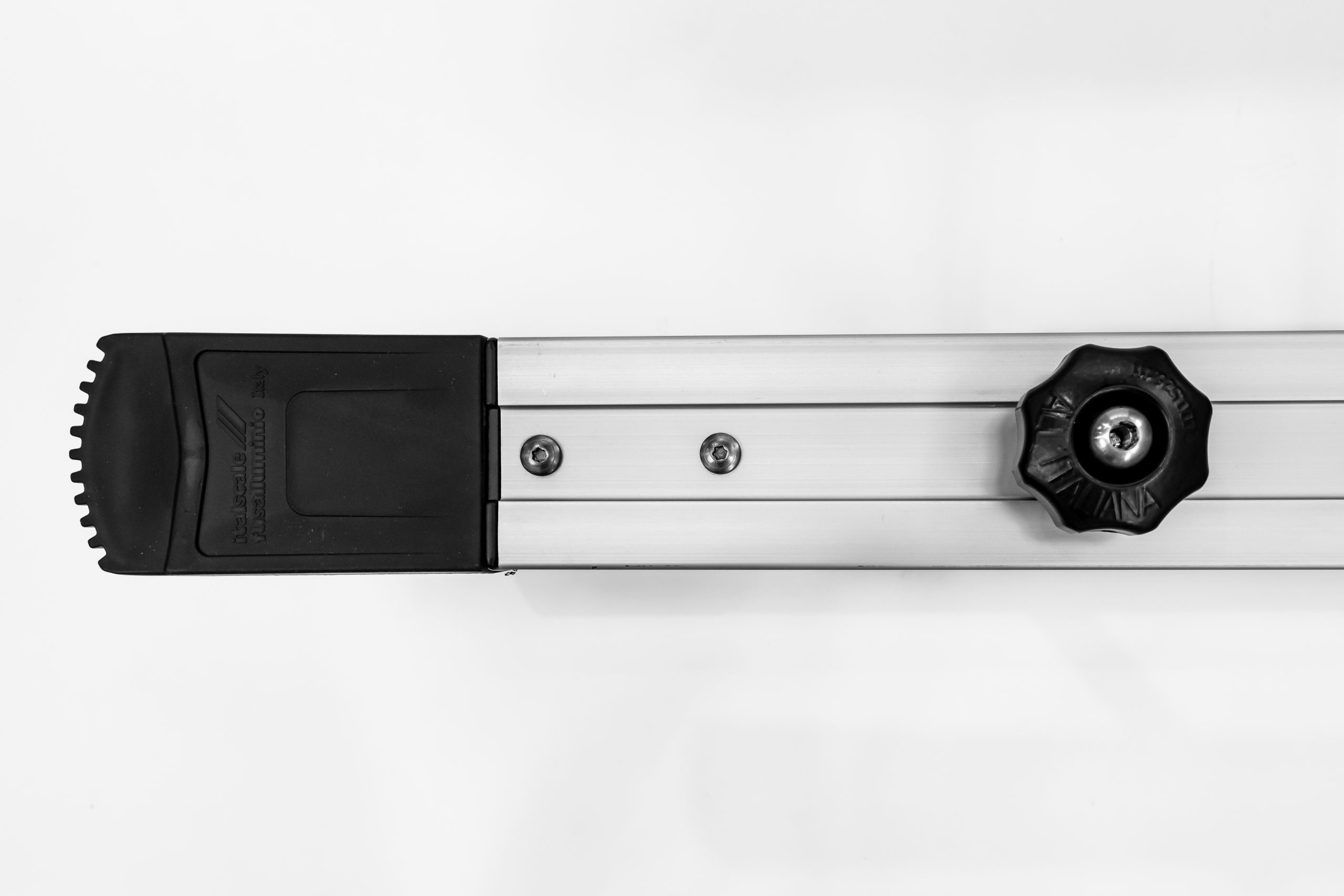

JOINTS AND FIXING HANDWHEEL: die-casted aluminum

WORKING HEIGHT: 10,40 m

CORRECT INCLINATION: 20°

TOTAL WEIGHT: 52,30 kg

SAFETY STANDARD: UNI EN 1147
