SUPPORTING LADDER – F11

DESCRIPTION

The ladder is made with aluminum frames and aluminum anti-slip steps. It is available in 3 versions:
• F11: with pegs 35×24 mm
• F11/P: with steps 85×23 mm
• F11/L: with steps 150×23 mm

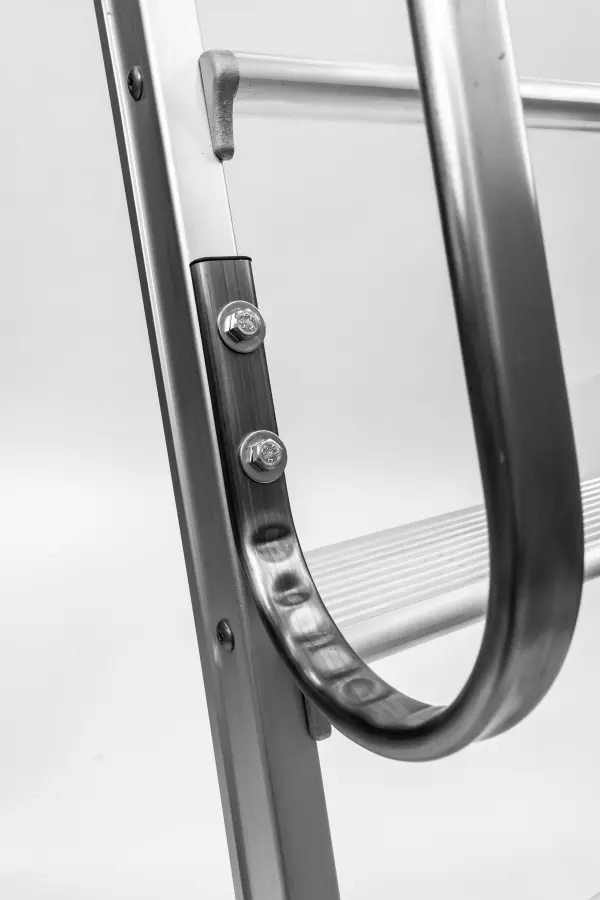

Moreover, there are three types of stainless steel handrail:
• Short handrail kit
• Handrail kit for landing
• Handrail kit for wall

On request, the ladder can be supplied with two hooks for fixing the ladder on any furniture, wall or shelf.

STEPS: they are mounted on aluminum die-casted supports with rungs and anti-torsion groove and they are fixed onto the frames.

WELD FREE AND RIVETING FREE

REQUEST QUOTE
DOWNLOAD TECHNICAL SHEET

Categories: , SKU: N/A

CodeAA***BB***CD*D**D***EE***FGG***Weight*Weight**Weight***QuantityAdd to quote
S2103820760127011801220500560565380550120214021204,3kg4,1kg4,5kg
S210410801000153014201610500580585490690120240023605,1kg5,2kg6kg
S210513401240179016601890500600605590830120266026005,9kg6,4kg7,5kg
S210616001480205019002170500620625680970120292028406,7kg7,6kg9kg
S2107186017202310214024505006406457801110120318030807,5kg8,8kg10,5kg
S2108212019602570238027305006606658801250120344032208,3kg10kg12kg
S2109238022002830262030105006806859801390120370035609,1kg11,2kg13,5kg
S211026402450309028603290500700705108015301203960380010kg12,4kg15kg
S211129102700336031003570500720725117016701204220404010,8kg13,6kg16,5kg
S211231702940362033403850500740745127018101204490428011,7kg14,9kg18kg
S21133430/3880/4130500760/1360/1204750/12,6kg16,2kg/
S21143700/4140/4410500780/1460/1205010/13,4kg17,5kg/
S21153960/4410/4690500800/1560/1205280/14,3kg18,8kg/

Description

WEIGHT CAPACITY: 150 kg (weight related to a person with tools)

STEPS:

• aluminum 85×23 mm in the version F11/P
• aluminum 150×23 mm in the version F11/L
• PEGS: anti-slip aluminum 35×24 in the version F11

FRAMES: anodized aluminum 65×30 mm

TOP WIDTH:

• With pegs = 540 mm
• With steps 85×23 = 500 mm
• With steps 150×23 = 510 mm

SAFETY STANDARD: D. Lgs. n° 81/2008
